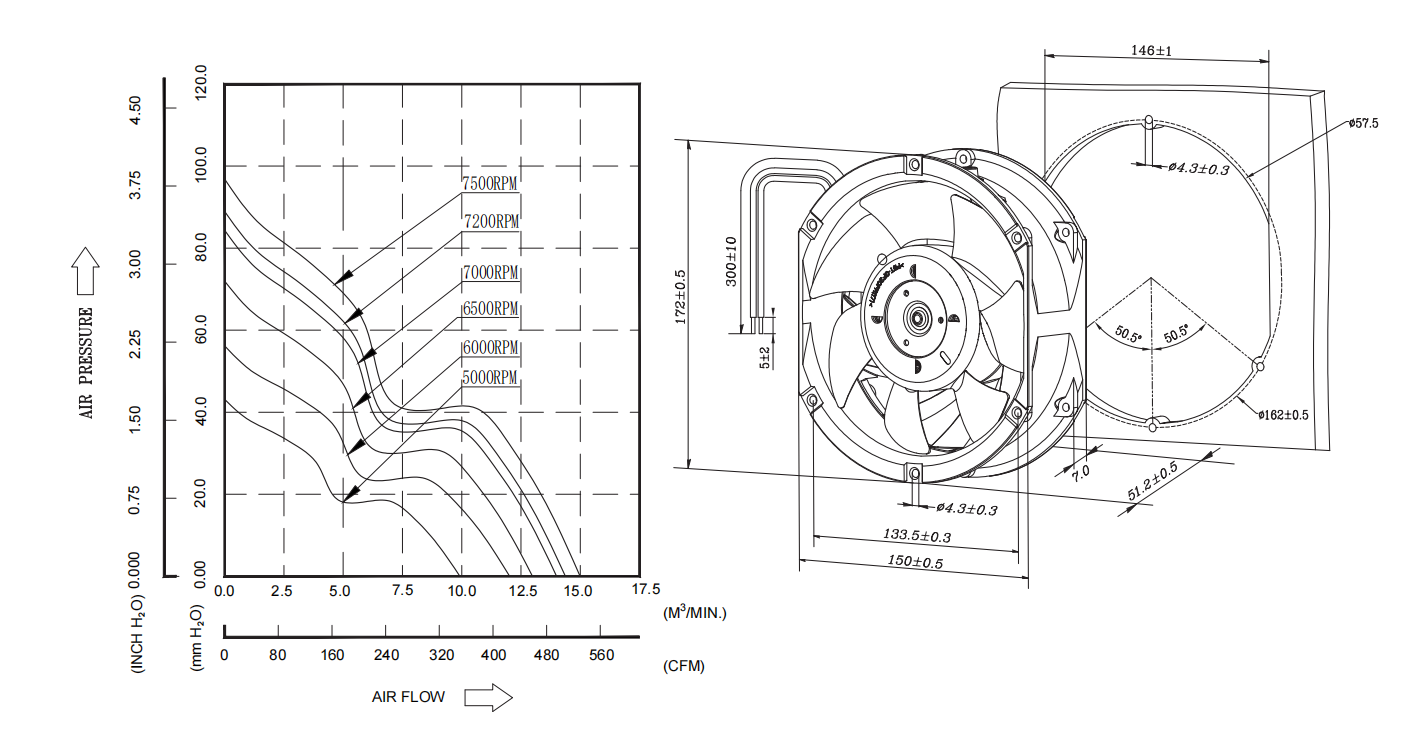

Gesamtabmessungen: 172 x 150 x 51 mm
Material: Laufradkunststoff (Brandschutzklasse UL94V-0), Rahmen Aluminium
Anschlussdrähte: UL 1007 AWG#22 oder gleichwertig
Laufrad: 7 Flügel
Drehrichtung: Ansicht im Uhrzeigersinn von der Laufradseite aus
Masse: 870g
| Produktnummer | BSR | U/min | VDC | Ampere | Watt | CFM | m³/H | mmH2O | inH2O | dB-A |
|---|---|---|---|---|---|---|---|---|---|---|
| SC241751-M | B | 5000 | 24 | 2,00 | 48,0 | 355,0 | 603.23 | 43,0 | 1,69 | 68,0 |
| SC241751-H | B | 6000 | 24 | 3,50 | 84,0 | 425,0 | 722,18 | 56,0 | 2.20 | 73,0 |
| SC241751-U | B | 6500 | 24 | 4,60 | 110.4 | 459,0 | 779,95 | 72,0 | 2,83 | 74,0 |
| SC241751-S | B | 7000 | 24 | 5,80 | 139.2 | 496,0 | 842,82 | 84,4 | 3.32 | 76,0 |
| SC481751-M | B | 5000 | 48 | 1,00 | 48,0 | 355,0 | 603.23 | 43,0 | 1,69 | 68,0 |
| SC481751-H | B | 6000 | 48 | 1,80 | 86,4 | 425,0 | 722,18 | 56,0 | 2.20 | 73,0 |
| SC481751-U | B | 6500 | 48 | 2.30 | 110.4 | 459,0 | 779,95 | 72,0 | 2,83 | 74,0 |
| SC481751-S | B | 7000 | 48 | 2,90 | 139.2 | 496,0 | 842,82 | 84,4 | 3.32 | 76,0 |
| SC481751-F | B | 7200 | 48 | 3,00 | 144,0 | 508,0 | 863,21 | 89,0 | 3,50 | 77,0 |
| SC481751-G | B | 7500 | 48 | 3.40 | 163,2 | 530,0 | 900,59 | 96,9 | 3,81 | 78,0 |
